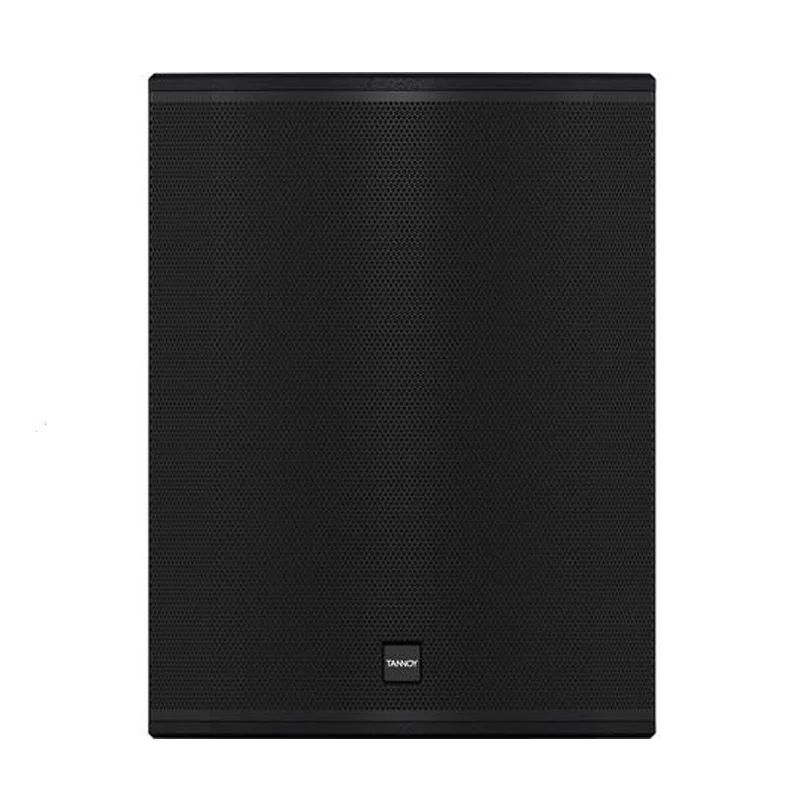

Loa Karaoke Tannoy VX 15HP
Link sản phẩm: https://www.tannoy.com/tannoy/product?modelCode=P0BUX
Thông Số Kỹ Thuât:
Frequency response | 70 Hz – 25 kHz ±3 dB 58 Hz – 30 kHz -10 dB |
Nominal dispersion | 75° conical @ -6 dB points |
Directivity factor (Q) | 9.7 |
Directivity index (DI) | 9.9 |
Power handling (IEC)
Passive | 400 W continuous, 1,600 W peak |
Bi-amp | LF: 400 W continuous, 1,600 W peak HF: 80 W continuous, 320 W peak |
Sensitivity | 99 dB (1 W @ 1 m) |
Maximum SPL
Passive | 125 dB continuous, 131 dB peak |
Bi-amp | LF: 126 dB continuous, 132 dB peak HF: 125 dB continuous, 131 dB peak |
Impedance
Passive | 8 Ω |
Bi-amp | 8 Ω 8 Ω |
Crossover Type | Passive / Bi-amp switchable |
Components | 1 x 15″ (380 mm) constant directivity PowerDual |
Enclosure
Connectors | 2x Neutrik speakON* NL4 1 x barrier strip terminals |
Wiring
Passive | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
Bi-Amp | Pins 1+ / 1- LF, Pins 2+ / 2- HF |
Dimensions H x W x D | 591 x 451 x 421 mm (23.3 x 17.8 x 16.6″) |
Net weight | 25.5 kg (56.2 lbs) |
Construction | 18 mm (3/4″) enclosure / 18 mm (3/4″) front,plywood, vented and internally braced |
Finish | Semi matt black paint (white optional) |
Grille | Powder coated perforated steel |
Flying hardware | M10 x 8 flying inserts(portrait or landscape mounting) M10 x 8 yoke bracket inserts 2 x Intergrip carrying handles Blanking plate for optional VTH pole mount Compatible with industry standard brackets M6 x 4 inserts |
