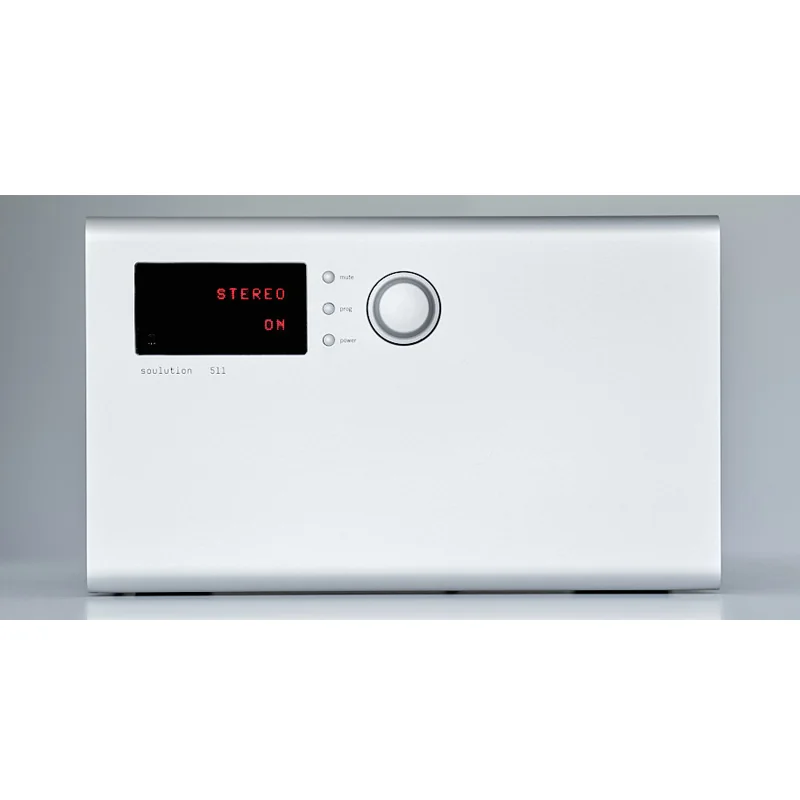

Power Stereo Soulution 511
Thông Số Kỹ Thuật:
511 Stereo/Dual | 511 Mono | |
---|---|---|
Mains | 100 – 240 V (50 – 60 Hz) | 100 – 240 V (50 – 60 Hz) |
Power consumption | < 0.5 W standby idle 100 W max 1600 W |
< 0.5 W standby idle 200 W max 2000 W |
Outputs | 2 pairs Cu-terminal, gold plated |
2 pairs Cu-terminal, gold plated |
Gain | + 26 dB | + 32 dB |
Power output | 2 × 150 W @ 8 Ω 2 × 300 W @ 4 Ω 2 × 600 W @ 2 Ω |
600 W @ 8 Ω 1200 W @ 4 Ω 2000 W @ 2 Ω |
Pulse power | > 2 × 2000 W | > 4500 W |
Frequency response (– 3 dB) | 0 – 800 kHz | 0 – 1.6 MHz |
THD + N | < 0.001% at 50 W @ 4 Ω (20 Hz – 20 kHz) |
< 0.001% at 200 W @ 4 Ω (20 Hz – 20 kHz) |
IM distortions | < 0.005 % SMPTE < 0.0006 CCIR |
< 0.005 % SMPTE < 0.0006 CCIR |
Signal-to-noise ratio | 108 dB (5 W @ 1 kHz) | 108 dB (5 W @ 1 kHz) |
Channel separation | > 120 dB @ 1 kHz | |
Damping factor | > 10,000 | > 5,000 |
Output current max | 45 A (limited) | 45 A (limited) |

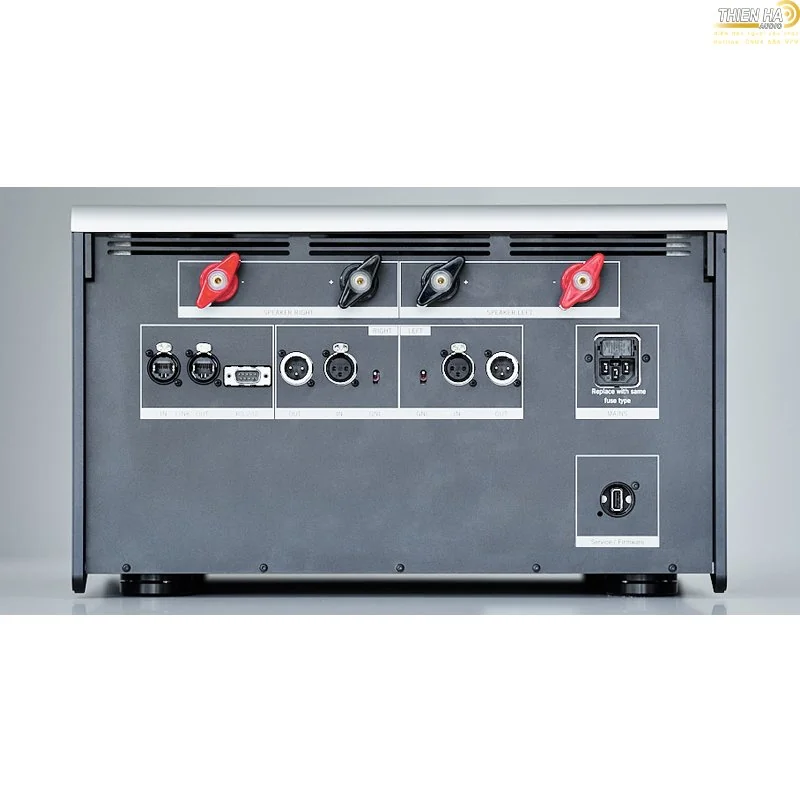

Inputs | 1 × balanced (XLR) | 1 × balanced (XLR) |
Input impedance | 2 kΩ balanced (XLR) | 2 kΩ balanced (XLR) |
Dimensions | 442 × 270 × 448 mm (W × H × D) | 442 × 270 × 448 mm (W × H × D) |
Weight | approx. 30 kg | approx. 30 kg |
LINK (remote turn-on) | 12 V control signal | 12 V control signal |
