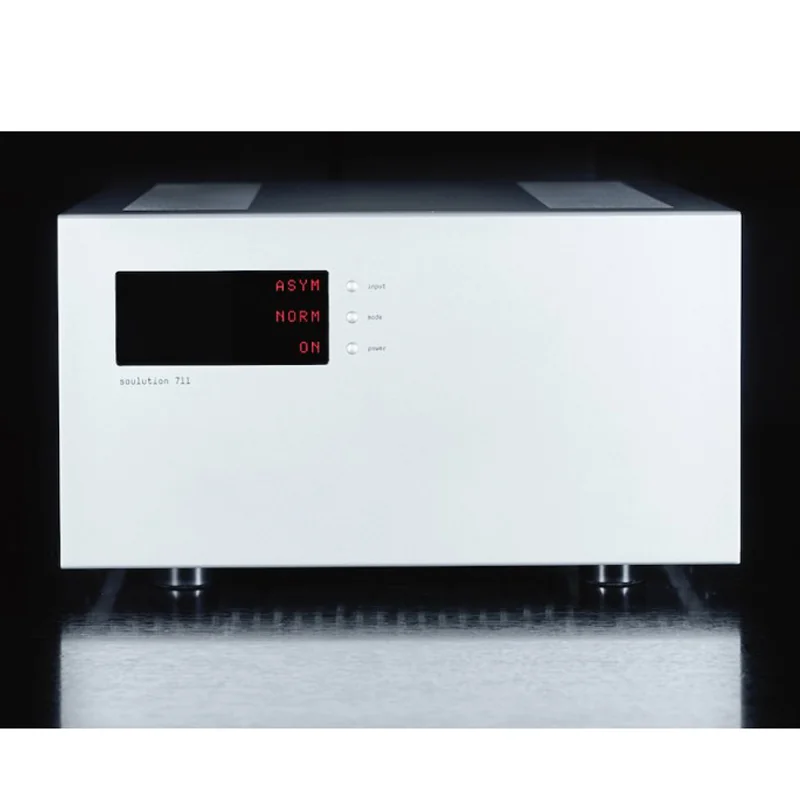

Ampli Stereo Soulution 711

Thông Số Kỹ Thuật:
Specifications
| Mains | 220 – 240 V (50 – 60 Hz) 100 – 120 V (50 – 60 Hz) |
| Power consumption | < 0.5 W standby idle 300 W max 1600 W |
| Outputs | 2 pairs Cu-terminal, gold plated |
| Gain | + 26 dB |
| Power output | 2 × 150 W @ 8 Ω 2 × 300 W @ 4 Ω 2 × 600 W @ 2 Ω |
| Pulse power | > 2 × 6000 W |
| Frequency response (– 3 dB) | 0 – 1 MHz |
| THD + N | < 0.001% at 50 W @ 4 Ω (20 Hz – 20 kHz) |
| IM distortions | < 0.005% SMPTE < 0.0006 CCIR |
| Signal-to-noise ratio | 108 dB (5 W @ 1 kHz) |
| Channel separation | > 120 dB @ 1 kHz |
| Damping factor | > 10 000 |
| Output current max | 120 A (limited) |
| Inputs | 1 × balanced (XLR) 1 × unbalanced (RCA) |
| Input impedance | 4.8 kΩ balanced (XLR) 10 kΩ unbalanced (RCA) |
| Dimensions | 480 × 280 × 535 mm (W × H × D) |
| Weight | approx. 65 kg |
| LINK (remote turn-on) | 12 V control signal |
