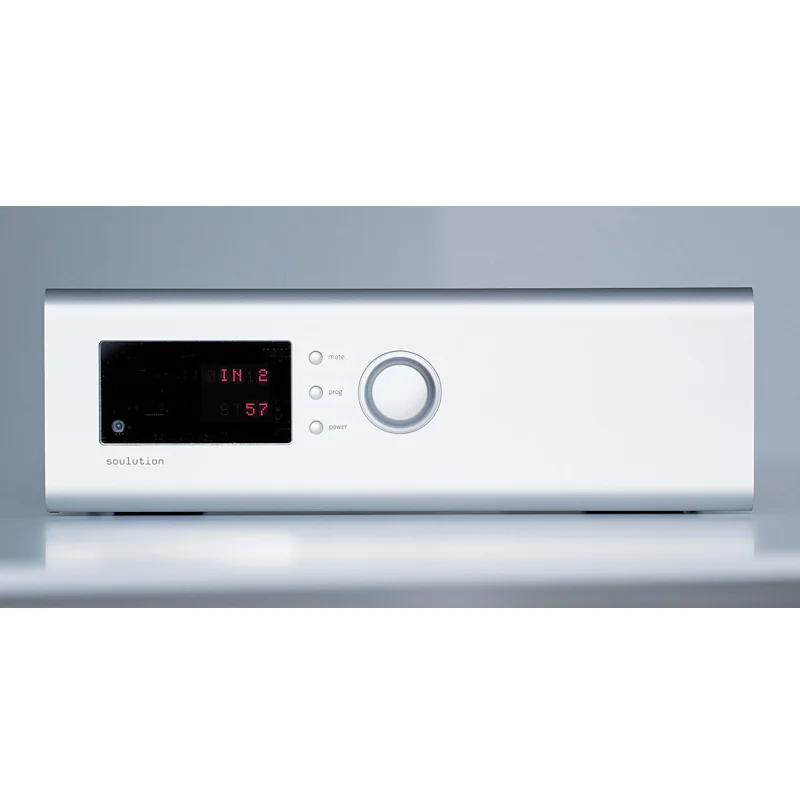

Preamplifier Soulution 520

Thông Số Kỹ Thuật:
| Mains | 220 – 240 V (50 – 60 Hz) 100 – 120 V (50 – 60 Hz) | |
| Power consumption | < 0.5 W standby 100 W device in operation | |
| Inputs | 2 × balanced (XLR) 2 × unbalanced (RCA | |
| Input Impedance | XLR: RCA: Phono: | 3 kΩ 3 kΩ adjustable |
| Outputs | 1 × balanced (XLR) 1 × unbalanced (RCA) | |
| Frequency response (– 3 dB) | 0 – 500 kHz | |
| THD + N | < 0.001% (20 Hz – 20 kHz) | |
| Signal-to-noise ration | > 120 dB | |
| Channel separation | < 120 dB | |
| Gain max | balanced unbalanced | – 83 … + 16 dB – 89 … + 10 dB |
| Volume control range | + 15 DB to – 79 dB in 1 dB steps | |
| Output impedance | 10 Ω balanced (XLR) 10 Ω unbalanced (RCA) | |
| Output voltage | 14 VRMS balanced (XLR) 7 VRMS unbalanced (RCA) | |
| Output current max | 0.2 A (limited) | |
| Dimensions | 442 × 143 × 448 mm (W × H × D) | |
| Weight | approx. 18.5 kg | |
| LINK (remote turn-on) | 12 V control signal | |
